Needle Roller Bearing
(Drawn Cup)

Maker : FAG

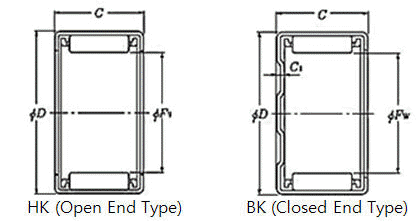

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
3	6.5	6	-	925	565	33000	50000	HK0306TN	-	0.0006	-
3	6.5	6	0.8	925	565	33000	50000	-	BK0306TN	0.0007	-
4	8	8	-	1770	1270	30000	45000	HK0408TN	-	0.0016	-
4	8	8	1.6	1770	1270	30000	45000	-	BK0408TN	0.0018	-
5	9	9	-	2640	2190	27000	40000	HK0509TN	-	0.0019	-
5	9	9	1.6	2640	2190	27000	40000	-	BK0509TN	0.0021	-
6	10	8	-	2280	2040	20000	34000	HK0608	-	0.0020	-
	10	9	-	2660	2280	25000	37000	HK0609B	-	0.0022	-
	10	9	1.6	2660	2280	25000	37000	-	BK0609B	0.0024	-
7	11	9	-	3400	3250	23000	34000	HK0709	-	0.0025	-
7	11	9	1.6	3400	3250	23000	34000	-	BK0709	0.0027	-
8	12	8	-	2800	28500	16000	26000	HK0808A	-	0.0032	-
	12	10	-	3850	3950	20000	30000	HK0810A	-	0.0032	JR5x8x12
	12	10	1.6	3850	3950	20000	30000	-	BK0810A	0.0034	JR5x8x12
9	13	10	-	4750	5300	18000	27000	HK0910B	-	0.0035	JR6x9x12
	13	10	1.6	4750	5300	18000	27000	-	BK0910B	0.0039	JR6x9x12
	13	12	-	5650	6650	18000	27000	HK0912B	-	0.0042	JR6x9x12
	13	12	1.6	5650	6650	18000	27000	-	BK0912B	0.0045	JR6x9x12

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
10	14	10	-	4500	5100	16000	24000	HK1010B	-	0.0038	JR7x10x10.5
	14	10	1.6	4500	5100	16000	24000	-	BK1010B	0.0042	JR7x10x10.5
	14	12	-	5900	7250	16000	24000	HK1012A	-	0.0045	JR7x10x12
	14	12	1.6	5900	7250	16000	24000	-	BK1012B	0.0050	JR7x10x12
	14	15	-	7100	9150	16000	24000	HK1015A	-	0.0056	JR7x10x16
	14	15	1.6	7100	9150	16000	24000	-	BK1015A	0.0062	JR7x10x16
12	16	10	-	5050	6250	13000	20000	HK1210B	-	0.0046	JR8x12x10.5
	16	10	1.6	5050	6250	13000	20000	-	BK1210B	0.0052	JR8x12x10.5
	18	12	-	6600	7300	13000	20000	HK1212	-	0.0091	JR8x12x12.5
	18	12	2.7	6600	7300	13000	20000	-	BK1212	0.0100	JR8x12x12.5
13	19	12	-	6950	7900	12000	18000	HK1312	-	0.0100	JR10x13x12.5
13	19	12	2.7	6950	7900	12000	18000	-	BK1312	0.0110	JR10x13x12.5
14	20	12	-	7200	8500	11000	17000	HK1412	-	0.0110	JR10x14x12
14	20	12	2.7	7200	8500	11000	17000	-	BK1412	0.0120	JR10x14x12
15	21	12	-	7500	9100	11000	16000	HK1512	-	0.0110	JR12x15x12.5
	21	12	2.7	7500	9100	11000	16000	-	BK1512	0.0130	JR12x15x12.5
	21	16	-	10700	14400	11000	16000	HK1516	-	0.0150	JR12x15x16.5
	21	16	2.7	10700	14400	11000	16000	-	BK1516	0.0170	JR12x15x16.5
	21	22	-	12900	18200	11000	16000	HK1522	-	0.0200	JR12x15x22.5
	21	22	2.7	12900	18200	11000	16000	-	BK1522	0.0220	JR12x15x22.5
16	22	12	-	7750	9700	10000	15000	HK1612	-	0.0120	JR12x16x12
	22	12	2.7	7750	9700	10000	15000	-	BK1612	0.014	JR12x16x12
	22	16	-	11100	15300	10000	15000	HK1616	-	0.016	JR12x16x16
	22	16	2.7	11100	15300	10000	15000	-	BK1616	0.018	JR12x16x16
	22	22	-	13300	19400	10000	15000	HK1622	-	0.022	JR12x16x22
	22	22	2.7	13300	19400	10000	15000	-	BK1622	0.023	JR12x16x22

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
17	23	12	-	8500	11100	9500	14000	HK1712	-	0.012	-
17	23	12	2.7	8500	11100	9500	14000	-	BK1712	0.015	-
18	24	12	-	8300	10900	8500	13000	HK1812	-	0.013	-
	24	12	2.7	8300	10900	8500	13000	-	BK1812	0.015	-
	24	16	-	11800	17300	8500	13000	HK1816	-	0.018	JR15x18x16.5
	24	16	2.7	11800	17300	8500	13000	-	BK1816	0.020	JR15x18x16.5
20	26	12	-	9250	13000	8000	12000	HK2012	-	0.014	JR15x20x12
	26	12	2.7	9250	13000	8000	12000	-	BK2012	0.017	JR15x20x12
	26	16	-	13000	20100	8000	12000	HK2016	-	0.019	JR17x20x16.5
	26	16	2.7	13000	20100	8000	12000	-	BK2016	0.022	JR17x20x16.5
	26	20	-	16400	27100	8000	12000	HK2020	-	0.024	JR17x20x20.5
	26	20	2.7	16400	27100	8000	12000	-	BK2020C	0.027	JR17x20x20.5
	26	30	-	22200	40000	8000	12000	HK2030	-	0.035	JR17x20x30.5
	26	30	2.7	22200	40000	8000	12000	-	BK2030	0.037	JR17x20x30.5
22	28	12	-	9750	14300	7500	11000	HK2212	-	0.013	JR17x22x13
	28	12	2.7	9750	14300	7500	11000	-	BK2212	0.015	JR17x22x13
	28	16	-	13600	22100	7500	11000	HK2216	-	0.021	JR17x22x16
	28	16	2.7	13600	22100	7500	11000	-	BK2216	0.024	JR17x22x16
	28	20	-	17200	29800	7500	11000	HK2220	-	0.026	JR17x22x23
	28	20	2.7	17200	29800	7500	11000	-	BK2220	0.030	JR17x22x23

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
25	32	12	-	11800	16300	6500	9500	HK2512	-	0.021	-
	32	12	2.7	11800	16300	6500	9500	-	BK2512	0.023	-
	32	16	-	15900	24000	6500	9500	HK2516	-	0.027	JR20x25x17
	32	16	2.7	15900	24000	6500	9500	-	BK2516	0.031	JR20x25x17
	32	20	-	20300	33000	6500	9500	HK2520	-	0.034	JR20x25x20.5
	32	20	2.7	20300	33000	6500	9500	-	BK2520	0.039	JR20x25x20.5
	32	26	-	26400	46000	6500	9500	HK2526	-	0.045	JR20x25x26.5
	32	26	2.7	26400	46000	6500	9500	-	BK2526	0.049	JR20x25x26.5
	32	38	-	35000	65500	6500	9500	HK2538	-	0.065	IR20x25x38.5
	32	38	2.7	35000	65500	6500	9500	-	BK2538	0.069	IR20x25x38.5
28	35	16	-	17300	27600	5500	8500	HK2816	-	0.030	JR22x28x17
	35	16	2.7	17300	27600	5500	8500	-	BK2816	0.034	JR22x28x17
	35	20	-	21300	36000	5500	8500	HK2820	-	0.038	JR22x28x20.5
	35	20	2.7	21300	36000	5500	8500	-	BK2820	0.043	JR22x28x20.5
30	37	12	-	13000	19500	5500	8000	HK3012	-	0.024	-
	37	12	2.7	13000	19500	5500	8000	-	BK3012	0.028	-
	37	16	-	18100	30000	5500	8000	HK3016	-	0.032	JR25x30x17
	37	16	2.7	18100	30000	5500	8000	-	BK3016C	0.037	JR25x30x17
	37	20	-	22300	39500	5500	8000	HK3020	-	0.040	JR25x30x20.5
	37	20	2.7	22300	39500	5500	8000	-	BK3020	0.047	JR25x30x20.5
	37	26	-	28500	54000	5500	8000	HK3026	-	0.053	JR25x30x26.5
	37	26	2.7	29100	55000	5500	8000	-	BK3026	0.059	JR25x30x26.5
	37	38	-	38500	78500	5500	8000	HK3038	-	0.076	JR25x30x38.5
	37	38	2.7	38500	78500	5500	8000	-	BK3038	0.083	JR25x30x38.5

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
35	42	12	-	14000	22800	4700	7000	HK3512A	-	0.028	-
	42	16	-	19700	35000	4700	7000	HK3516	-	0.037	JR30x35x17
	42	20	-	24800	47500	4700	7000	HK3520	-	0.046	JR30x35x20.5
40	47	12	-	15100	26000	4000	6000	HK4012	-	0.031	-
	47	16	-	21100	40000	4000	6000	HK4016	-	0.041	JR35x40x17
	47	20	-	25900	52500	4000	6000	HK4020	-	0.052	JR35x40x20.5
45	52	16	-	21600	43000	3700	5500	HK4516	-	0.046	JR40x45x17
	52	20	-	27600	59000	3700	5500	HK4520	-	0.058	JR40x45x20.5
	52	20	2.7	27600	59000	3700	5500	-	BK4520	0.072	JR40x45x20.5
50	58	20	-	31500	63000	3200	4800	HK5020	-	0.072	JR40x50x20
50	58	25	-	38500	82000	3200	4800	HK5025	-	0.090	JR45x50x25.5
