Thrust Ball Bearing

Maker : NSK

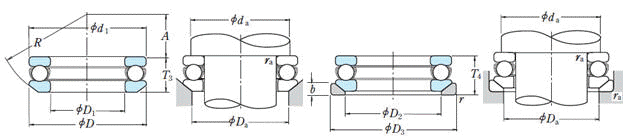

d (내경)	D	T3	T4	r min	호칭번호		d1	D1	D2	D3	b	A	R	da min	Da max	ra max
d (내경)	D	T3	T4	r min	Bearing	Seat Washer	d1	D1	D2	D3	b	A	R	da min	Da max	ra max
10	26	11.6	13	0.6	53200	53200 U	26	12	18	28	3.5	8.5	22	20	16	0.6
12	28	11.4	13	0.6	53201	53201 U	28	14	20	30	3.5	11.5	25	22	18	0.6
15	32	13.3	15	0.6	53202	53202 U	32	17	24	35	4	12	28	25	22	0.6
17	35	13.2	15	0.6	53203	53203 U	35	19	26	38	4	16	32	28	24	0.6
20	40	14.7	17	0.6	53204	53204 U	40	22	30	42	5	18	36	32	28	0.6
25	47	16.7	19	0.6	53205	53205 U	47	27	36	50	5.5	19	40	38	34	0.6
	52	19.8	22	1	53305	53305 U	52	27	38	55	6	21	45	41	36	1
	60	26.4	29	1	53405	53405 U	60	27	42	62	8	19	50	46	39	1
30	52	17.8	20	0.6	53206	53206 U	52	32	42	55	5.5	22	45	43	39	0.6
	60	22.6	25	1	53306	53306 U	60	32	45	62	7	22	50	48	42	1
	70	30.1	33	1	53406	53406 U	70	32	50	75	9	20	56	54	46	1

호칭번호		Basic Load Ratings (kN)		Limiting Speeds (rpm)		占쌩뤄옙 (g)
Bearing	Seat Washer	Ca	Coa	Grease	Oil	Bearing	Seat Washer
53200	53200 U	12.8	17.1	6000	9000	0.029	0.036
53201	53201 U	13.3	19.0	5600	8500	0.031	0.039
53202	53202 U	16.7	24.8	5000	7500	0.048	0.059
53203	53203 U	17.3	27.3	4800	7500	0.055	0.069
53204	53204 U	22.5	37.5	4300	6300	0.080	0.096
53205	53205 U	28.0	50.5	3800	5600	0.123	0.151
53305	53305 U	36.0	61.5	3200	5000	0.182	0.224
53405	53405 U	56.0	89.5	2600	4000	0.353	0.426
53206	53206 U	29.5	58.0	3400	5300	0.154	0.183
53306	53306 U	43.0	78.5	2800	4300	0.28	0.336
53406	53406 U	73.0	126.0	2200	3400	0.535	0.666

d (내경)	D	T3	T4	r min	호칭번호		d1	D1	D2	D3	b	A	R	da min	Da max	ra max
d (내경)	D	T3	T4	r min	Bearing	Seat Washer	d1	D1	D2	D3	b	A	R	da min	Da max	ra max
35	62	19.9	22	1	53207	53207 U	62	37	48	65	7	24	50	51	46	1
	68	25.6	28	1	53307	53307 U	68	37	52	72	7.5	24	56	55	48	1
	80	34	37	1.1	53407	53407 U	80	37	58	85	10	23	64	62	53	1
40	68	20.3	23	1	53208	53208 U	68	42	55	72	7	28.5	56	57	51	1
	78	28.5	31	1	53308	53308 U	78	42	60	82	8.5	28	64	63	55	1
	90	38.2	42	1.1	53408	53408 U	90	42	65	95	12	26	72	70	60	1
45	73	21.3	24	1	53209	53209 U	73	47	60	78	7.5	26	56	62	56	1
	85	30.1	33	1	53309	53309 U	85	47	65	90	10	25	64	69	61	1
	100	42.4	46	1.1	53409	53409 U	100	47	72	105	12.5	29	80	78	67	1
50	78	23.5	26	1	53210	53210 U	78	52	62	82	7.5	32.5	64	67	61	1
	95	34.3	37	1.1	53310	53310 U	95	52	72	100	11	28	72	77	68	1
	110	45.6	50	1.5	53410	53410 U	110	52	80	115	14	35	90	86	74	1.5

호칭번호		Basic Load Ratings (kN)		Limiting Speeds (rpm)		占쌩뤄옙 (g)
Bearing	Seat Washer	Ca	Coa	Grease	Oil	Bearing	Seat Washer
53207	53207 U	39.5	78.0	3000	4500	0.231	0.292
53307	53307 U	56.0	105.0	2400	3800	0.403	0.488
53407	53407 U	87.5	155.0	2000	3000	0.785	0.967
53208	53208 U	47.5	98.5	2800	4300	0.289	0.355
53308	53308 U	70.0	135.0	2200	3400	0.581	0.704
53408	53408 U	103.0	188.0	1700	2600	1.12	1.38
53209	53209 U	48.0	105.0	2600	4000	0.333	0.419
53309	53309 U	80.5	163.0	2000	3000	0.702	0.888
53409	53409 U	128.0	246.0	1600	2400	1.53	1.87
53210	53210 U	49.0	111.0	2400	3600	0.404	0.504
53310	53310 U	97.5	202.0	1800	2800	1.01	1.27
53410	53410 U	147.0	288.0	1400	2200	1.98	2.41

d (내경)	D	T3	T4	r min	호칭번호		d1	D1	D2	D3	b	A	R	da min	Da max	ra max
d (내경)	D	T3	T4	r min	Bearing	Seat Washer	d1	D1	D2	D3	b	A	R	da min	Da max	ra max
55	90	27.3	30	1	53211	53211 U	90	57	72	95	9	35	72	76	69	1
	105	39.3	42	1.1	53311	53311 U	105	57	80	110	11.5	30	80	85	75	1
	120	50.5	55	1.5	53411	53411 U	120	57	88	125	15.5	28	90	94	81	1.5
60	95	28	31	1	53212	53212 U	95	62	78	100	9	32.5	72	81	74	1
	110	38.3	42	1.1	53312	53312 U	110	62	85	115	11.5	41	90	90	80	1
	130	54	58	1.5	53412	53412 U	130	62	95	135	16	34	100	102	88	1.5
65	100	28.7	32	1	53213	53213 U	100	67	82	105	9	40	80	86	79	1
	115	39.4	43	1.1	53313	53313 U	115	67	90	120	12.5	38.5	90	95	85	1
	140	60.2	65	2	53413	53413 U	140	68	100	145	17.5	40	112	110	95	2
70	105	28.8	32	1	53214	53214 U	105	72	88	110	9	38	80	91	84	1
	125	44.2	48	1.1	53314	53314 U	125	72	98	130	13	43	100	103	92	1
	150	63.6	69	2	53414	53414 U	150	73	110	155	19.5	34	112	118	102	2

호칭번호		Basic Load Ratings (kN)		Limiting Speeds (rpm)		占쌩뤄옙 (g)
Bearing	Seat Washer	Ca	Coa	Grease	Oil	Bearing	Seat Washer
53211	53211 U	70.0	159.0	2200	3200	0.656	0.819
53311	53311 U	115.0	244.0	1600	2400	1.45	1.78
53411	53411 U	181.0	350.0	1300	1900	2.59	3.16
53212	53212 U	71.5	169.0	2000	3000	0.731	0.897
53312	53312 U	119.0	263.0	1600	2400	1.51	1.83
53412	53412 U	202.0	395.0	1200	1800	3.2	3.91
53213	53213 U	75.5	189.0	1900	2800	0.812	0.989
53313	53313 U	123.0	282.0	1500	2400	1.67	2.04
53413	53413 U	234.0	495.0	1100	1700	4.22	5.13
53214	53214 U	74.0	189.0	1900	2800	0.866	1.05
53314	53314 U	137.0	315.0	1400	2000	2.2	2.64
53414	53414 U	252.0	555.0	1000	1500	5.12	6.21

d (내경)	D	T3	T4	r min	호칭번호		d1	D1	D2	D3	b	A	R	da min	Da max	ra max
d (내경)	D	T3	T4	r min	Bearing	Seat Washer	d1	D1	D2	D3	b	A	R	da min	Da max	ra max
75	110	28.3	32	1	53215	53215 U	110	77	92	115	9.5	49	90	96	89	1
	135	48.1	52	1.5	53315	53315 U	135	77	105	140	15	37	100	111	99	1.5
	160	69	75	2	53415	53415 U	160	78	115	165	21	42	125	125	110	2
80	115	29.5	33	1	53216	53216 U	115	82	98	120	10	46	90	101	94	1
	140	47.6	52	1.5	53316	53316 U	140	82	110	145	15	50	112	116	104	1.5
	170	72.2	78	2.1	53416	53416 U	170	83	125	175	22	36	125	133	117	2
85	125	33.1	37	1	53217	53217 U	125	88	105	130	11	52	100	109	101	1
	150	53.1	58	1.5	53317	53317 U	150	88	115	155	17.5	43	112	124	111	1.5
	180	77	83	2.1	53417X	53417XU	177	88	130	185	23	47	140	141	124	2
90	135	38.5	42	1.1	53218	53218 U	135	93	110	140	13.5	45	100	117	108	1
	155	54.6	59	1.5	53318	53318 U	155	93	120	160	18	40	112	129	116	1.5
	190	81.2	88	2.1	53418X	53418XU	187	93	140	195	25.5	40	140	149	131	2
100	150	40.9	45	1.1	53220	53220 U	150	103	125	155	14	52	112	130	120	1
100	170	59.2	64	1.5	53320	53320 U	170	103	135	175	18	46	125	142	128	1.5

호칭번호		Basic Load Ratings (kN)		Limiting Speeds (rpm)		占쌩뤄옙 (g)
Bearing	Seat Washer	Ca	Coa	Grease	Oil	Bearing	Seat Washer
53215	53215 U	78.0	209.0	1800	2800	1.27	1.11
53315	53315 U	159.0	365.0	1300	1900	2.8	3.42
53415	53415 U	254.0	560.0	950	1400	6.23	7.58
53216	53216 U	79.0	218.0	1800	2600	1.01	1.23
53316	53316 U	164.0	395.0	1300	1900	2.94	3.55
53416	53416 U	272.0	620.0	900	1300	7.33	8.9
53217	53217 U	96.0	264.0	1600	2400	1.35	1.63
53317	53317 U	207.0	490.0	1100	1700	3.78	4.67
53417X	53417XU	310.0	755.0	850	1300	8.72	10.4
53218	53218 U	114.0	310.0	1400	2200	1.89	2.38
53318	53318 U	214.0	525.0	1100	1700	4.11	5.09
53418X	53418XU	330.0	825.0	800	1200	10.3	12.4
53220	53220 U	135.0	375.0	1300	2000	2.49	3.03
53320	53320 U	239.0	595.0	1000	1500	5.31	6.37

d (내경)	D	T3	T4	r min	호칭번호		d1	D1	D2	D3	b	A	R	da min	Da max	ra max
d (내경)	D	T3	T4	r min	Bearing	Seat Washer	d1	D1	D2	D3	b	A	R	da min	Da max	ra max
110	160	40.2	45	1.1	53222	53222 U	160	113	135	165	14	65	125	140	130	1
	190	67.2	72	2	53322X	53322XU	187	113	150	195	20.5	51	140	158	142	2
	230	99.7	109	3	53422X	53422XU	225	113	170	240	29	59	180	181	159	2.5
120	170	40.8	46	1.1	53224	53224 U	170	123	145	175	15	61	125	150	140	1
	210	74.1	80	2.1	53324X	53324XU	205	123	165	220	22	63	160	173	157	2
	250	107.3	118	4	53424X	53424XU	245	123	185	260	32	70	200	196	174	3
130	190	47.9	53	1.5	53226X	53226XU	187	133	160	195	17	67	140	166	154	1.5
	225	80.3	86	2.1	53326X	53326XU	220	134	177	235	26	53	160	186	169	2
	270	115.2	128	4	53426X	53426XU	265	134	200	280	38	58	200	212	188	3
140	200	48.6	55	1.5	53228X	53228XU	197	143	170	210	17	87	160	176	164	1.5
	240	84.9	92	2.1	53328X	53328XU	235	144	190	250	26	68	180	199	181	2
	280	117	131	4	53428X	53428XU	275	144	206	290	38	83	225	222	198	3

호칭번호		Basic Load Ratings (kN)		Limiting Speeds (rpm)		占쌩뤄옙 (g)
Bearing	Seat Washer	Ca	Coa	Grease	Oil	Bearing	Seat Washer
53222	53222 U	136.0	395.0	1300	1900	2.65	3.2
53322X	53322XU	282.0	755.0	900	1300	7.55	9.1
53422X	53422XU	415.0	1150.0	630	950	20.5	24.3
53224	53224 U	141.0	430.0	1200	1800	2.94	3.58
53324X	53324XU	330.0	930.0	800	1200	10.1	12.4
53424X	53424XU	480.0	1400.0	600	900	26.5	31.3
53226X	53226XU	183.0	550.0	1100	1600	4.35	5.33
53326X	53326XU	350.0	1030.0	750	1100	12.7	15.8
53426X	53426XU	525.0	1590.0	530	800	32.4	38.8
53228X	53228XU	186.0	575.0	1000	1500	4.74	5.89
53328X	53328XU	370.0	1130.0	670	1000	16.3	19.5
53428X	53428XU	550.0	1750.0	530	800	34.8	41.4

d (내경)	D	T3	T4	r min	호칭번호		d1	D1	D2	D3	b	A	R	da min	Da max	ra max
d (내경)	D	T3	T4	r min	Bearing	Seat Washer	d1	D1	D2	D3	b	A	R	da min	Da max	ra max
150	215	53.3	60	1.5	53230X	53230XU	212	153	180	225	20.5	79	160	189	176	1.5
	250	83.7	92	2.1	53330X	53330XU	245	154	200	260	26	89.5	200	209	191	2
	300	125.9	140	4	53430X	53430XU	295	154	225	310	41	69	225	238	212	3
160	225	54.7	61	1.5	53232X	53232XU	222	163	190	235	21	74	160	199	186	1.5
	270	91.7	100	3	53332X	53332XU	265	164	215	280	29	77	200	225	205	2.5
	320	135.3	150	5	53432X	53432XU	315	164	240	330	41.5	84	250	254	226	4
170	240	58.7	65	1.5	53234X	53234XU	237	173	200	250	21.5	91	180	212	198	1.5
	280	91.3	100	3	53334X	53334XU	275	174	220	290	29	105	225	235	215	2.5
	340	141	156	5	53434X	53434XU	335	174	255	350	46	74	250	269	241	4
180	250	58.2	66	1.5	53236X	53236XU	247	183	210	260	21.5	112	200	222	208	1.5
	300	99.3	109	3	53336X	53336XU	295	184	240	310	32	91	225	251	229	2.5
	360	148.3	164	5	53436X	53436XU	355	184	270	370	46.5	97	280	285	255	4
190	270	65.7	73	2	53238X	53238XU	267	194	230	280	23	98	200	238	222	2

호칭번호		Basic Load Ratings (kN)		Limiting Speeds (rpm)		占쌩뤄옙 (g)
Bearing	Seat Washer	Ca	Coa	Grease	Oil	Bearing	Seat Washer
53230X	53230XU	238.0	735.0	950	1400	6.09	7.82
53330X	53330XU	380.0	1200.0	670	1000	17.3	20.5
53430X	53430XU	620.0	2010.0	480	710	43.8	51.9
53232X	53232XU	249.0	805.0	900	1400	6.78	8.7
53332X	53332XU	475.0	1570.0	600	900	22.3	26.7
53432X	53432XU	650.0	2210.0	450	670	52.9	62
53234X	53234XU	280.0	915.0	850	1300	8.21	10.5
53334X	53334XU	465.0	1570.0	600	900	23.2	28
53434X	53434XU	715.0	2480.0	430	630	61.3	73
53236X	53236XU	284.0	955.0	800	1200	8.57	10.8
53336X	53336XU	480.0	1680.0	560	850	29.2	34.9
53436X	53436XU	750.0	2730.0	400	600	72.1	84.9
53238X	53238XU	320.0	1110.0	750	1100	12.9	15.7

d (내경)	D	T3	T4	r min	호칭번호		d1	D1	D2	D3	b	A	R	da min	Da max	ra max
d (내경)	D	T3	T4	r min	Bearing	Seat Washer	d1	D1	D2	D3	b	A	R	da min	Da max	ra max
200	280	65.3	74	2	53240X	53240XU	277	204	240	290	23	125	225	248	232	2
200	340	118.4	130	4	53340X	53340XU	335	205	270	350	38	92	250	282	258	3
220	300	65.6	75	2	53244X	53244XU	297	224	260	310	25	118	225	268	252	2
240	340	81.6	92	2.1	53248X	53248XU	335	244	290	350	30	122	250	299	281	2
260	360	82.8	93	2.1	53252X	53252XU	355	264	305	370	30	152	280	319	301	2
280	380	85	94	2.1	53256X	53256XU	375	284	325	390	31	143	280	339	321	2
300	420	100.5	112	3	53260X	53260XU	415	304	360	430	34	164	320	371	349	2.5
320	440	100.5	112	3	53264X	53264XU	435	325	380	450	36	157	320	391	369	2.5
340	460	100.3	113	3	53268X	53268XU	455	345	400	470	36	199	360	411	389	2.5
360	500	116.7	130	4	53272X	53272XU	495	365	430	510	43	172	360	442	418	3

호칭번호		Basic Load Ratings (kN)		Limiting Speeds (rpm)		占쌩뤄옙 (g)
Bearing	Seat Washer	Ca	Coa	Grease	Oil	Bearing	Seat Washer
53240X	53240XU	315.0	1110.0	710	1100	13.4	16.1
53340X	53340XU	600.0	2220.0	480	710	46.2	54.8
53244X	53244XU	325.0	1210.0	670	1000	14.9	18
53248X	53248XU	420.0	1650.0	560	850	25.6	30.7
53252X	53252XU	435.0	1800.0	560	850	27.3	33.2
53256X	53256XU	450.0	1950.0	530	800	30.3	37
53260X	53260XU	540.0	2410.0	450	670	47.7	56.1
53264X	53264XU	585.0	2680.0	450	670	49.9	59.4
53268X	53268XU	595.0	2800.0	430	630	52.7	62
53272X	53272XU	705.0	3500.0	380	560	76.3	90.9
