Angular Contact Ball Bearing (NSK)
Angular Contact Ball Bearing
Maker : NSK
Ultra High-Speed (고속) Angular Contact Ball Bearings (ROBUST Series)
① Bore diameter (mm)
② Bearing type
BNR: 18 ° contact angle
BER : 25 ° contact angle

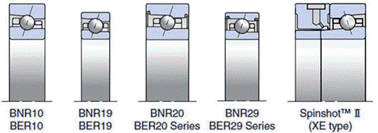

③ Dimension
10: 10 series, 19: 19 series,
20: 20 series, 29: 29 series
④ Material
| Type | Material |
| Rings | Rolling elements |
| S | Bearing steel (SUJ2) | Bearing steel (SUJ2) |
| H | Bearing steel (SUJ2) | ceramics (Si3N4) |
| X | Heat resistant steel (SHX) | ceramics (Si3N4) |
| XE | Heat resistant steel (SHX) | ceramics (Si3N4) |
⑤ Cage
TYN : ball guided polyamide resin cage ; limiting speed dn = 1 400 000
operational temperature limit = 120 °C
T: phenolic resin cage with outer ring guide; operational temperature limit = 120°C
⑥ Seal No symbol : open type , V1V : non-contact rubber seal
⑦ Arrangement
SU : universal arrangement (single row)
DU : universal arrangement (double row)
DB : Back-to-back arrangement
DF : Face-to-face arrangement
DT : tandem arrangement
DBD , DFD , DTD , DUD : triplex set arrangement
DBB, DFF, DBT, DFT, DTT, QU: quadruplex set arrangement
⑧ Preload
EL : extra light preload
L : light preload
M : medium preload
H : heavy preload
CP : special preload
CA : special axial clearance
⑨ Accuracy
P2 : ISO Class 2 , P4 : ISO Class 4
P5 : ISO Class 5
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR19 Series
BER19 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 25BNR19S | 25 | 42 | 9 | 0.3 | 0.15 | 5.95 | 3.50 | 4.95 | 9.9 | 0.042 | 41800 | 59800 |
| 25BNR19H | 25 | 42 | 9 | 0.3 | 0.15 | 5.95 | 3.50 | 3.25 | 9.9 | 0.038 | 53800 | 83600 |
| 25BNR19X | 25 | 42 | 9 | 0.3 | 0.15 | 5.95 | 3.50 | 3.25 | 9.9 | 0.038 | 62700 | 98600 |
| 25BER19S | 25 | 42 | 9 | 0.3 | 0.15 | 5.70 | 3.40 | 5.95 | 12.3 | 0.042 | 35900 | 50800 |
| 25BER19H | 25 | 42 | 9 | 0.3 | 0.15 | 5.70 | 3.40 | 3.95 | 12.3 | 0.038 | 47800 | 74700 |
| 25BER19X | 25 | 42 | 9 | 0.3 | 0.15 | 5.70 | 3.40 | 3.95 | 12.3 | 0.038 | 56800 | 89600 |
| 30BNR19S | 30 | 47 | 9 | 0.3 | 0.15 | 6.30 | 4.05 | 5.75 | 10.8 | 0.048 | 36400 | 52000 |
| 30BNR19H | 30 | 47 | 9 | 0.3 | 0.15 | 6.30 | 4.05 | 3.80 | 10.8 | 0.043 | 46800 | 72800 |
| 30BNR19X | 30 | 47 | 9 | 0.3 | 0.15 | 6.30 | 4.05 | 3.80 | 10.8 | 0.043 | 54600 | 85800 |
| 30BER19S | 30 | 47 | 9 | 0.3 | 0.15 | 6.00 | 3.90 | 6.80 | 13.5 | 0.048 | 31200 | 44200 |
| 30BER19H | 30 | 47 | 9 | 0.3 | 0.15 | 6.00 | 3.90 | 4.60 | 13.5 | 0.043 | 41600 | 65000 |
| 30BER19X | 30 | 47 | 9 | 0.3 | 0.15 | 6.00 | 3.90 | 4.60 | 13.5 | 0.043 | 49400 | 78000 |
| 35BNR19S | 35 | 55 | 10 | 0.6 | 0.3 | 9.20 | 6.00 | 8.55 | 12.3 | 0.072 | 31200 | 44500 |
| 35BNR19H | 35 | 55 | 10 | 0.6 | 0.3 | 9.20 | 6.00 | 5.60 | 12.3 | 0.063 | 40000 | 62300 |
| 35BNR19X | 35 | 55 | 10 | 0.6 | 0.3 | 9.20 | 6.00 | 5.60 | 12.3 | 0.063 | 46700 | 73400 |
| 35BER19S | 35 | 55 | 10 | 0.6 | 0.3 | 8.80 | 5.75 | 10.0 | 15.5 | 0.072 | 26700 | 37800 |
| 35BER19H | 35 | 55 | 10 | 0.6 | 0.3 | 8.80 | 5.75 | 6.80 | 15.5 | 0.063 | 35600 | 55600 |
| 35BER19X | 35 | 55 | 10 | 0.6 | 0.3 | 8.80 | 5.75 | 6.80 | 15.5 | 0.063 | 42300 | 66700 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR19 Series
BER19 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 40BNR19S | 40 | 62 | 12 | 0.6 | 0.3 | 11.5 | 7.65 | 10.8 | 14.3 | 0.105 | 27500 | 39300 |
| 40BNR19H | 40 | 62 | 12 | 0.6 | 0.3 | 11.5 | 7.65 | 7.10 | 14.3 | 0.092 | 35300 | 55000 |
| 40BNR19X | 40 | 62 | 12 | 0.6 | 0.3 | 11.5 | 7.65 | 7.10 | 14.3 | 0.092 | 41200 | 64800 |
| 40BER19S | 40 | 62 | 12 | 0.6 | 0.3 | 11.0 | 7.35 | 12.8 | 17.9 | 0.105 | 23600 | 33400 |
| 40BER19H | 40 | 62 | 12 | 0.6 | 0.3 | 11.0 | 7.35 | 8.65 | 17.9 | 0.092 | 31400 | 49100 |
| 40BER19X | 40 | 62 | 12 | 0.6 | 0.3 | 11.0 | 7.35 | 8.65 | 17.9 | 0.092 | 37300 | 58900 |
| 45BNR19S | 45 | 68 | 12 | 0.6 | 0.3 | 12.1 | 8.70 | 12.4 | 15.2 | 0.125 | 24800 | 35400 |
| 45BNR19H | 45 | 68 | 12 | 0.6 | 0.3 | 12.1 | 8.70 | 8.10 | 15.2 | 0.111 | 31900 | 49600 |
| 45BNR19X | 45 | 68 | 12 | 0.6 | 0.3 | 12.1 | 8.70 | 8.10 | 15.2 | 0.111 | 37200 | 58500 |
| 45BER19S | 45 | 68 | 12 | 0.6 | 0.3 | 11.6 | 8.35 | 14.6 | 19.2 | 0.125 | 21300 | 30100 |
| 45BER19H | 45 | 68 | 12 | 0.6 | 0.3 | 11.6 | 8.35 | 9.85 | 19.2 | 0.111 | 28400 | 44300 |
| 45BER19X | 45 | 68 | 12 | 0.6 | 0.3 | 11.6 | 8.35 | 9.85 | 19.2 | 0.111 | 33700 | 53100 |
| 50BNR19S | 50 | 72 | 12 | 0.6 | 0.3 | 12.8 | 9.75 | 13.9 | 15.9 | 0.127 | 23000 | 32800 |
| 50BNR19H | 50 | 72 | 12 | 0.6 | 0.3 | 12.8 | 9.75 | 9.10 | 15.9 | 0.111 | 29600 | 46000 |
| 50BNR19X | 50 | 72 | 12 | 0.6 | 0.3 | 12.8 | 9.75 | 9.10 | 15.9 | 0.111 | 34500 | 54100 |
| 50BER19S | 50 | 72 | 12 | 0.6 | 0.3 | 12.3 | 9.35 | 16.3 | 20.2 | 0.127 | 19700 | 27900 |
| 50BER19H | 50 | 72 | 12 | 0.6 | 0.3 | 12.3 | 9.35 | 11.0 | 20.2 | 0.111 | 26300 | 41000 |
| 50BER19X | 50 | 72 | 12 | 0.6 | 0.3 | 12.3 | 9.35 | 11.0 | 20.2 | 0.111 | 31200 | 49200 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR19 Series
BER19 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 55BNR19S | 55 | 80 | 13 | 1.0 | 0.6 | 14.4 | 11.4 | 16.2 | 17.5 | 0.178 | 20800 | 29700 |
| 55BNR19H | 55 | 80 | 13 | 1.0 | 0.6 | 14.4 | 11.4 | 10.6 | 17.5 | 0.158 | 26700 | 41500 |
| 55BNR19X | 55 | 80 | 13 | 1.0 | 0.6 | 14.4 | 11.4 | 10.6 | 17.5 | 0.158 | 31200 | 48900 |
| 55BER19S | 55 | 80 | 13 | 1.0 | 0.6 | 13.8 | 10.9 | 16.1 | 22.2 | 0.178 | 17800 | 25200 |
| 55BER19H | 55 | 80 | 13 | 1.0 | 0.6 | 13.8 | 10.9 | 12.9 | 22.2 | 0.158 | 23800 | 37100 |
| 55BER19X | 55 | 80 | 13 | 1.0 | 0.6 | 13.8 | 10.9 | 12.9 | 22.2 | 0.158 | 28200 | 44500 |
| 60BNR19S | 60 | 85 | 13 | 1.0 | 0.6 | 14.6 | 12.0 | 17.1 | 18.3 | 0.190 | 19400 | 27600 |
| 60BNR19H | 60 | 85 | 13 | 1.0 | 0.6 | 14.6 | 12.0 | 11.2 | 18.3 | 0.170 | 24900 | 38700 |
| 60BNR19X | 60 | 85 | 13 | 1.0 | 0.6 | 14.6 | 12.0 | 11.2 | 18.3 | 0.170 | 29000 | 45600 |
| 60BER19S | 60 | 85 | 13 | 1.0 | 0.6 | 14.0 | 11.5 | 20.1 | 23.4 | 0.190 | 16600 | 23500 |
| 60BER19H | 60 | 85 | 13 | 1.0 | 0.6 | 14.0 | 11.5 | 13.6 | 23.4 | 0.170 | 22100 | 34500 |
| 60BER19X | 60 | 85 | 13 | 1.0 | 0.6 | 14.0 | 11.5 | 13.6 | 23.4 | 0.170 | 26300 | 41400 |
| 65BNR19S | 65 | 90 | 13 | 1.0 | 0.6 | 15.2 | 13.2 | 18.7 | 19.1 | 0.204 | 18100 | 25900 |
| 65BNR19H | 65 | 90 | 13 | 1.0 | 0.6 | 15.2 | 13.2 | 12.3 | 19.1 | 0.181 | 23300 | 36200 |
| 65BNR19X | 65 | 90 | 13 | 1.0 | 0.6 | 15.2 | 13.2 | 12.3 | 19.1 | 0.181 | 27100 | 42600 |
| 65BER19S | 65 | 90 | 13 | 1.0 | 0.6 | 14.5 | 12.6 | 22.1 | 24.6 | 0.204 | 15500 | 22000 |
| 65BER19H | 65 | 90 | 13 | 1.0 | 0.6 | 14.5 | 12.6 | 14.9 | 24.6 | 0.181 | 20700 | 32300 |
| 65BER19X | 65 | 90 | 13 | 1.0 | 0.6 | 14.5 | 12.6 | 14.9 | 24.6 | 0.181 | 24600 | 38800 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR19 Series
BER19 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 70BNR19S | 70 | 100 | 16 | 1.0 | 0.6 | 21.3 | 18.1 | 26.1 | 21.8 | 0.328 | 16500 | 23600 |
| 70BNR19H | 70 | 100 | 16 | 1.0 | 0.6 | 21.3 | 18.1 | 17.1 | 21.8 | 0.292 | 21200 | 33000 |
| 70BNR19X | 70 | 100 | 16 | 1.0 | 0.6 | 21.3 | 18.1 | 17.1 | 21.8 | 0.292 | 24800 | 38900 |
| 70BER19S | 70 | 100 | 16 | 1.0 | 0.6 | 20.4 | 17.3 | 30.5 | 27.8 | 0.328 | 14200 | 20000 |
| 70BER19H | 70 | 100 | 16 | 1.0 | 0.6 | 20.4 | 17.3 | 20.7 | 27.8 | 0.292 | 18900 | 29500 |
| 70BER19X | 70 | 100 | 16 | 1.0 | 0.6 | 20.4 | 17.3 | 20.7 | 27.8 | 0.292 | 22400 | 35300 |
| 75BNR19S | 75 | 105 | 16 | 1.0 | 0.6 | 21.6 | 19.0 | 27.5 | 22.6 | 0.348 | 15600 | 22300 |
| 75BNR19H | 75 | 105 | 16 | 1.0 | 0.6 | 21.6 | 19.0 | 18.0 | 22.6 | 0.310 | 20000 | 31200 |
| 75BNR19X | 75 | 105 | 16 | 1.0 | 0.6 | 21.6 | 19.0 | 18.0 | 22.6 | 0.310 | 23400 | 36700 |
| 75BER19S | 75 | 105 | 16 | 1.0 | 0.6 | 20.7 | 18.2 | 32.5 | 29.0 | 0.348 | 13400 | 18900 |
| 75BER19H | 75 | 105 | 16 | 1.0 | 0.6 | 20.7 | 18.2 | 21.7 | 29.0 | 0.310 | 17800 | 27800 |
| 75BER19X | 75 | 105 | 16 | 1.0 | 0.6 | 20.7 | 18.2 | 21.7 | 29.0 | 0.310 | 21200 | 33400 |
| 80BNR19S | 80 | 110 | 16 | 1.0 | 0.6 | 22.0 | 19.9 | 28.9 | 23.4 | 0.366 | 14000 | 21100 |
| 80BNR19H | 80 | 110 | 16 | 1.0 | 0.6 | 22.0 | 19.9 | 18.9 | 23.4 | 0.326 | 19000 | 29500 |
| 80BNR19X | 80 | 110 | 16 | 1.0 | 0.6 | 22.0 | 19.9 | 18.9 | 23.4 | 0.326 | 22200 | 34800 |
| 80BER19S | 80 | 110 | 16 | 1.0 | 0.6 | 21.0 | 19.1 | 34.0 | 30.1 | 0.366 | 12700 | 17900 |
| 80BER19H | 80 | 110 | 16 | 1.0 | 0.6 | 21.0 | 19.1 | 22.8 | 30.1 | 0.326 | 16900 | 26400 |
| 80BER19X | 80 | 110 | 16 | 1.0 | 0.6 | 21.0 | 19.1 | 22.8 | 30.1 | 0.326 | 20000 | 31600 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR19 Series
BER19 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 85BNR19S | 85 | 120 | 18 | 1.1 | 0.6 | 29.4 | 26.3 | 38.0 | 25.7 | 0.527 | 13700 | 19600 |
| 85BNR19H | 85 | 120 | 18 | 1.1 | 0.6 | 29.4 | 26.3 | 24.8 | 25.7 | 0.456 | 17600 | 27400 |
| 85BNR19X | 85 | 120 | 18 | 1.1 | 0.6 | 29.4 | 26.3 | 24.8 | 25.7 | 0.456 | 20500 | 32200 |
| 85BER19S | 85 | 120 | 18 | 1.1 | 0.6 | 28.1 | 25.2 | 35.5 | 32.9 | 0.527 | 11800 | 16600 |
| 85BER19H | 85 | 120 | 18 | 1.1 | 0.6 | 28.1 | 25.2 | 30.0 | 32.9 | 0.456 | 15700 | 24400 |
| 85BER19X | 85 | 120 | 18 | 1.1 | 0.6 | 28.1 | 25.2 | 30.0 | 32.9 | 0.456 | 18600 | 29000 |
| 90BNR19S | 90 | 125 | 18 | 1.1 | 0.6 | 31.5 | 29.7 | 43.0 | 26.5 | 0.552 | 13100 | 18700 |
| 90BNR19H | 90 | 125 | 18 | 1.1 | 0.6 | 31.5 | 29.7 | 28.1 | 26.5 | 0.480 | 16800 | 26100 |
| 90BNR19X | 90 | 125 | 18 | 1.1 | 0.6 | 31.5 | 29.7 | 28.1 | 26.5 | 0.480 | 19600 | 30700 |
| 90BER19S | 90 | 125 | 18 | 1.1 | 0.6 | 30.0 | 28.5 | 50.5 | 34.1 | 0.552 | 11200 | 15900 |
| 90BER19H | 90 | 125 | 18 | 1.1 | 0.6 | 30.0 | 28.5 | 34.0 | 34.1 | 0.480 | 14900 | 23300 |
| 90BER19X | 90 | 125 | 18 | 1.1 | 0.6 | 30.0 | 28.5 | 34.0 | 34.1 | 0.480 | 17700 | 28000 |
| 95BNR19S | 95 | 130 | 18 | 1.1 | 0.6 | 32.0 | 31.0 | 50.0 | 28.3 | 0.571 | 12500 | 17800 |
| 95BNR19H | 95 | 130 | 18 | 1.1 | 0.6 | 32.0 | 31.0 | 32.5 | 28.3 | 0.497 | 16000 | 24900 |
| 95BNR19X | 95 | 130 | 18 | 1.1 | 0.6 | 32.0 | 31.0 | 32.5 | 28.3 | 0.497 | 18700 | 29400 |
| 95BER19S | 95 | 130 | 18 | 1.1 | 0.6 | 30.5 | 29.7 | 58.5 | 36.7 | 0.571 | 10700 | 15200 |
| 95BER19H | 95 | 130 | 18 | 1.1 | 0.6 | 30.5 | 29.7 | 39.5 | 36.7 | 0.497 | 14300 | 22300 |
| 95BER19X | 95 | 130 | 18 | 1.1 | 0.6 | 30.5 | 29.7 | 39.5 | 36.7 | 0.497 | 16900 | 26700 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR19 Series
BER19 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 100BNR19S | 100 | 140 | 20 | 1.1 | 0.6 | 38.0 | 35.0 | 50.5 | 29.5 | 0.770 | 11700 | 16700 |
| 100BNR19H | 100 | 140 | 20 | 1.1 | 0.6 | 38.0 | 35.0 | 33.0 | 29.5 | 0.673 | 15000 | 23400 |
| 100BNR19X | 100 | 140 | 20 | 1.1 | 0.6 | 38.0 | 35.0 | 33.0 | 29.5 | 0.673 | 17500 | 27500 |
| 100BER19S | 100 | 140 | 20 | 1.1 | 0.6 | 36.0 | 33.5 | 59.5 | 38.0 | 0.770 | 10000 | 14200 |
| 100BER19H | 100 | 140 | 20 | 1.1 | 0.6 | 36.0 | 33.5 | 40.0 | 38.0 | 0.673 | 13400 | 20900 |
| 100BER19X | 100 | 140 | 20 | 1.1 | 0.6 | 36.0 | 33.5 | 40.0 | 38.0 | 0.673 | 15900 | 25000 |
| 105BNR19S | 105 | 145 | 20 | 1.1 | 0.6 | 36.0 | 33.5 | 53.0 | 38.0 | 0.795 | 11200 | 16000 |
| 105BNR19H | 105 | 145 | 20 | 1.1 | 0.6 | 36.0 | 33.5 | 40.0 | 38.0 | 0.693 | 14400 | 22400 |
| 105BNR19X | 105 | 145 | 20 | 1.1 | 0.6 | 36.0 | 33.5 | 40.0 | 38.0 | 0.693 | 16800 | 26400 |
| 105BER19S | 105 | 145 | 20 | 1.1 | 0.6 | 37.0 | 35.0 | 62.0 | 40.9 | 0.795 | 9600 | 13600 |
| 105BER19H | 105 | 145 | 20 | 1.1 | 0.6 | 37.0 | 35.0 | 42.0 | 40.9 | 0.693 | 12800 | 20000 |
| 105BER19X | 105 | 145 | 20 | 1.1 | 0.6 | 37.0 | 35.0 | 42.0 | 40.9 | 0.693 | 15200 | 24000 |
| 110BNR19S | 110 | 150 | 20 | 1.1 | 0.6 | 39.0 | 38.0 | 55.5 | 31.1 | 0.838 | 10800 | 15400 |
| 110BNR19H | 110 | 150 | 20 | 1.1 | 0.6 | 39.0 | 38.0 | 42.0 | 31.1 | 0.733 | 13900 | 21600 |
| 110BNR19X | 110 | 150 | 20 | 1.1 | 0.6 | 39.0 | 38.0 | 42.0 | 31.1 | 0.733 | 16200 | 25400 |
| 110BER19S | 110 | 150 | 20 | 1.1 | 0.6 | 37.5 | 36.5 | 65.0 | 40.3 | 0.838 | 9300 | 13100 |
| 110BER19H | 110 | 150 | 20 | 1.1 | 0.6 | 37.5 | 36.5 | 44.0 | 40.3 | 0.733 | 12400 | 19300 |
| 110BER19X | 110 | 150 | 20 | 1.1 | 0.6 | 37.5 | 36.5 | 44.0 | 40.3 | 0.733 | 14700 | 23100 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR19 Series
BER19 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 120BNR19S | 120 | 165 | 22 | 1.1 | 0.6 | 54.0 | 52.0 | 75.0 | 34.2 | 1.124 | 9900 | 14100 |
| 120BNR19H | 120 | 165 | 22 | 1.1 | 0.6 | 54.0 | 52.0 | 49.0 | 34.2 | 0.949 | 12700 | 19700 |
| 120BNR19X | 120 | 165 | 22 | 1.1 | 0.6 | 54.0 | 52.0 | 49.0 | 34.2 | 0.949 | 14800 | 23200 |
| 120BER19S | 120 | 165 | 22 | 1.1 | 0.6 | 51.5 | 50.0 | 88.0 | 44.2 | 1.124 | 8500 | 12000 |
| 120BER19H | 120 | 165 | 22 | 1.1 | 0.6 | 51.5 | 50.0 | 59.5 | 44.2 | 0.949 | 11300 | 17600 |
| 120BER19X | 120 | 165 | 22 | 1.1 | 0.6 | 51.5 | 50.0 | 59.5 | 44.2 | 0.949 | 13400 | 21100 |
| 130BNR19S | 130 | 180 | 24 | 1.5 | 1.0 | 59.5 | 58.5 | 85.0 | 37.2 | 1.477 | 9100 | 13000 |
| 130BNR19H | 130 | 180 | 24 | 1.5 | 1.0 | 59.5 | 58.5 | 56.0 | 37.2 | 1.265 | 11700 | 18100 |
| 130BER19S | 130 | 180 | 24 | 1.5 | 1.0 | 57.0 | 56.5 | 100 | 48.1 | 1.477 | 7800 | 11000 |
| 130BER19H | 130 | 180 | 24 | 1.5 | 1.0 | 57.0 | 56.5 | 67.5 | 48.1 | 1.265 | 10400 | 16200 |
| 140BNR19S | 140 | 190 | 24 | 1.5 | 1.0 | 60.0 | 61.5 | 89.5 | 38.8 | 1.567 | 8500 | 12200 |
| 140BNR19H | 140 | 190 | 24 | 1.5 | 1.0 | 60.0 | 61.5 | 58.5 | 38.8 | 1.353 | 11000 | 17000 |
| 140BER19S | 140 | 190 | 24 | 1.5 | 1.0 | 57.5 | 59.0 | 105 | 50.5 | 1.567 | 7300 | 10400 |
| 140BER19H | 140 | 190 | 24 | 1.5 | 1.0 | 57.5 | 59.0 | 70.5 | 50.5 | 1.353 | 9700 | 15200 |
| 150BNR19S | 150 | 210 | 28 | 2.0 | 1.0 | 77.0 | 78.5 | 114 | 43.2 | 2.459 | 7800 | 11200 |
| 150BNR19H | 150 | 210 | 28 | 2.0 | 1.0 | 77.0 | 78.5 | 75.0 | 43.2 | 2.139 | 10000 | 15600 |
| 150BER19S | 150 | 210 | 28 | 2.0 | 1.0 | 73.5 | 75.5 | 134 | 55.9 | 2.459 | 6700 | 9500 |
| 150BER19H | 150 | 210 | 28 | 2.0 | 1.0 | 73.5 | 75.5 | 90.5 | 55.9 | 2.139 | 8900 | 13900 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR10 Series
BER10 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 30BNR10S | 30 | 55 | 13 | 1.0 | 0.6 | 8.65 | 5.75 | 8.20 | 13.3 | 0.124 | 33000 | 47100 |
| 30BNR10H | 30 | 55 | 13 | 1.0 | 0.6 | 8.65 | 5.75 | 5.35 | 13.3 | 0.116 | 42400 | 65900 |
| 30BNR10X | 30 | 55 | 13 | 1.0 | 0.6 | 8.65 | 5.75 | 5.35 | 13.3 | 0.116 | 49500 | 77700 |
| 30BER10S | 30 | 55 | 13 | 1.0 | 0.6 | 8.30 | 5.50 | 9.65 | 16.3 | 0.124 | 28300 | 40000 |
| 30BER10H | 30 | 55 | 13 | 1.0 | 0.6 | 8.30 | 5.50 | 6.50 | 16.3 | 0.116 | 37700 | 58900 |
| 30BER10X | 30 | 55 | 13 | 1.0 | 0.6 | 8.30 | 5.50 | 6.50 | 16.3 | 0.116 | 44800 | 70600 |
| 35BNR10S | 35 | 62 | 14 | 1.0 | 0.6 | 10.1 | 7.10 | 10.2 | 14.8 | 0.164 | 28900 | 41300 |
| 35BNR10H | 35 | 62 | 14 | 1.0 | 0.6 | 10.1 | 7.10 | 6.70 | 14.8 | 0.154 | 37200 | 57800 |
| 35BNR10X | 35 | 62 | 14 | 1.0 | 0.6 | 10.1 | 7.10 | 6.70 | 14.8 | 0.154 | 43300 | 68100 |
| 35BER10S | 35 | 62 | 14 | 1.0 | 0.6 | 9.70 | 6.85 | 12.0 | 18.2 | 0.164 | 24800 | 35100 |
| 35BER10H | 35 | 62 | 14 | 1.0 | 0.6 | 9.70 | 6.85 | 8.10 | 18.2 | 0.154 | 33000 | 51600 |
| 35BER10X | 35 | 62 | 14 | 1.0 | 0.6 | 9.70 | 6.85 | 8.10 | 18.2 | 0.154 | 39200 | 61900 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR10 Series
BER10 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 40BNR10S | 40 | 68 | 15 | 1.0 | 0.6 | 10.6 | 7.95 | 11.5 | 16.2 | 0.204 | 26000 | 37100 |
| 40BNR10H | 40 | 68 | 15 | 1.0 | 0.6 | 10.6 | 7.95 | 7.50 | 16.2 | 0.193 | 33400 | 51900 |
| 40BNR10X | 40 | 68 | 15 | 1.0 | 0.6 | 10.6 | 7.95 | 7.50 | 16.2 | 0.193 | 38900 | 61200 |
| 40BER10S | 40 | 68 | 15 | 1.0 | 0.6 | 10.1 | 7.65 | 13.5 | 19.9 | 0.204 | 22300 | 31500 |
| 40BER10H | 40 | 68 | 15 | 1.0 | 0.6 | 10.1 | 7.65 | 9.10 | 19.9 | 0.193 | 29700 | 46300 |
| 40BER10X | 40 | 68 | 15 | 1.0 | 0.6 | 10.1 | 7.65 | 9.10 | 19.9 | 0.193 | 35200 | 55600 |
| 45BNR10S | 45 | 75 | 16 | 1.0 | 0.6 | 11.7 | 9.00 | 12.7 | 17.6 | 0.259 | 23400 | 33400 |
| 45BNR10H | 45 | 75 | 16 | 1.0 | 0.6 | 11.7 | 9.00 | 8.35 | 17.6 | 0.246 | 30000 | 46700 |
| 45BNR10X | 45 | 75 | 16 | 1.0 | 0.6 | 11.7 | 9.00 | 8.35 | 17.6 | 0.246 | 35000 | 55000 |
| 45BER10S | 45 | 75 | 16 | 1.0 | 0.6 | 11.2 | 8.60 | 15.0 | 21.8 | 0.259 | 20000 | 28400 |
| 45BER10H | 45 | 75 | 16 | 1.0 | 0.6 | 11.2 | 8.60 | 10.1 | 21.8 | 0.246 | 26700 | 41700 |
| 45BER10X | 45 | 75 | 16 | 1.0 | 0.6 | 11.2 | 8.60 | 10.1 | 21.8 | 0.246 | 31700 | 50000 |
| 50BNR10S | 50 | 80 | 16 | 1.0 | 0.6 | 12.2 | 9.90 | 14.0 | 18.4 | 0.281 | 21600 | 30800 |
| 50BNR10H | 50 | 80 | 16 | 1.0 | 0.6 | 12.2 | 9.90 | 9.20 | 18.4 | 0.266 | 27700 | 43100 |
| 50BNR10X | 50 | 80 | 16 | 1.0 | 0.6 | 12.2 | 9.90 | 9.20 | 18.4 | 0.266 | 32400 | 50800 |
| 50BER10S | 50 | 80 | 16 | 1.0 | 0.6 | 11.6 | 9.50 | 16.5 | 23.0 | 0.281 | 18500 | 26200 |
| 50BER10H | 50 | 80 | 16 | 1.0 | 0.6 | 11.6 | 9.50 | 11.1 | 23.0 | 0.266 | 24700 | 38500 |
| 50BER10X | 50 | 80 | 16 | 1.0 | 0.6 | 11.6 | 9.50 | 11.1 | 23.0 | 0.266 | 29300 | 46200 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR10 Series
BER10 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 55BNR19S | 55 | 80 | 13 | 1.0 | 0.6 | 14.4 | 11.4 | 16.2 | 17.5 | 0.178 | 20800 | 29700 |
| 55BNR19H | 55 | 80 | 13 | 1.0 | 0.6 | 14.4 | 11.4 | 10.6 | 17.5 | 0.158 | 26700 | 41500 |
| 55BNR19X | 55 | 80 | 13 | 1.0 | 0.6 | 14.4 | 11.4 | 10.6 | 17.5 | 0.158 | 31200 | 48900 |
| 55BER19S | 55 | 80 | 13 | 1.0 | 0.6 | 13.8 | 10.9 | 16.1 | 22.2 | 0.178 | 17800 | 25200 |
| 55BER19H | 55 | 80 | 13 | 1.0 | 0.6 | 13.8 | 10.9 | 12.9 | 22.2 | 0.158 | 23800 | 37100 |
| 55BER19X | 55 | 80 | 13 | 1.0 | 0.6 | 13.8 | 10.9 | 12.9 | 22.2 | 0.158 | 28200 | 44500 |
| 60BNR19S | 60 | 85 | 13 | 1.0 | 0.6 | 14.6 | 12.0 | 17.1 | 18.3 | 0.190 | 19400 | 27600 |
| 60BNR19H | 60 | 85 | 13 | 1.0 | 0.6 | 14.6 | 12.0 | 11.2 | 18.3 | 0.170 | 24900 | 38700 |
| 60BNR19X | 60 | 85 | 13 | 1.0 | 0.6 | 14.6 | 12.0 | 11.2 | 18.3 | 0.170 | 29000 | 45600 |
| 60BER19S | 60 | 85 | 13 | 1.0 | 0.6 | 14.0 | 11.5 | 20.1 | 23.4 | 0.190 | 16600 | 23500 |
| 60BER19H | 60 | 85 | 13 | 1.0 | 0.6 | 14.0 | 11.5 | 13.6 | 23.4 | 0.170 | 22100 | 34500 |
| 60BER19X | 60 | 85 | 13 | 1.0 | 0.6 | 14.0 | 11.5 | 13.6 | 23.4 | 0.170 | 26300 | 41400 |
| 65BNR19S | 65 | 90 | 13 | 1.0 | 0.6 | 15.2 | 13.2 | 18.7 | 19.1 | 0.204 | 18100 | 25900 |
| 65BNR19H | 65 | 90 | 13 | 1.0 | 0.6 | 15.2 | 13.2 | 12.3 | 19.1 | 0.181 | 23300 | 36200 |
| 65BNR19X | 65 | 90 | 13 | 1.0 | 0.6 | 15.2 | 13.2 | 12.3 | 19.1 | 0.181 | 27100 | 42600 |
| 65BER19S | 65 | 90 | 13 | 1.0 | 0.6 | 14.5 | 12.6 | 22.1 | 24.6 | 0.204 | 15500 | 22000 |
| 65BER19H | 65 | 90 | 13 | 1.0 | 0.6 | 14.5 | 12.6 | 14.9 | 24.6 | 0.181 | 20700 | 32300 |
| 65BER19X | 65 | 90 | 13 | 1.0 | 0.6 | 14.5 | 12.6 | 14.9 | 24.6 | 0.181 | 24600 | 38800 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR10 Series
BER10 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 70BNR19S | 70 | 100 | 16 | 1.0 | 0.6 | 21.3 | 18.1 | 26.1 | 21.8 | 0.328 | 16500 | 23600 |
| 70BNR19H | 70 | 100 | 16 | 1.0 | 0.6 | 21.3 | 18.1 | 17.1 | 21.8 | 0.292 | 21200 | 33000 |
| 70BNR19X | 70 | 100 | 16 | 1.0 | 0.6 | 21.3 | 18.1 | 17.1 | 21.8 | 0.292 | 24800 | 38900 |
| 70BER19S | 70 | 100 | 16 | 1.0 | 0.6 | 20.4 | 17.3 | 30.5 | 27.8 | 0.328 | 14200 | 20000 |
| 70BER19H | 70 | 100 | 16 | 1.0 | 0.6 | 20.4 | 17.3 | 20.7 | 27.8 | 0.292 | 18900 | 29500 |
| 70BER19X | 70 | 100 | 16 | 1.0 | 0.6 | 20.4 | 17.3 | 20.7 | 27.8 | 0.292 | 22400 | 35300 |
| 75BNR19S | 75 | 105 | 16 | 1.0 | 0.6 | 21.6 | 19.0 | 27.5 | 22.6 | 0.348 | 15600 | 22300 |
| 75BNR19H | 75 | 105 | 16 | 1.0 | 0.6 | 21.6 | 19.0 | 18.0 | 22.6 | 0.310 | 20000 | 31200 |
| 75BNR19X | 75 | 105 | 16 | 1.0 | 0.6 | 21.6 | 19.0 | 18.0 | 22.6 | 0.310 | 23400 | 36700 |
| 75BER19S | 75 | 105 | 16 | 1.0 | 0.6 | 20.7 | 18.2 | 32.5 | 29.0 | 0.348 | 13400 | 18900 |
| 75BER19H | 75 | 105 | 16 | 1.0 | 0.6 | 20.7 | 18.2 | 21.7 | 29.0 | 0.310 | 17800 | 27800 |
| 75BER19X | 75 | 105 | 16 | 1.0 | 0.6 | 20.7 | 18.2 | 21.7 | 29.0 | 0.310 | 21200 | 33400 |
| 80BNR19S | 80 | 110 | 16 | 1.0 | 0.6 | 22.0 | 19.9 | 28.9 | 23.4 | 0.366 | 14000 | 21100 |
| 80BNR19H | 80 | 110 | 16 | 1.0 | 0.6 | 22.0 | 19.9 | 18.9 | 23.4 | 0.326 | 19000 | 29500 |
| 80BNR19X | 80 | 110 | 16 | 1.0 | 0.6 | 22.0 | 19.9 | 18.9 | 23.4 | 0.326 | 22200 | 34800 |
| 80BER19S | 80 | 110 | 16 | 1.0 | 0.6 | 21.0 | 19.1 | 34.0 | 30.1 | 0.366 | 12700 | 17900 |
| 80BER19H | 80 | 110 | 16 | 1.0 | 0.6 | 21.0 | 19.1 | 22.8 | 30.1 | 0.326 | 16900 | 26400 |
| 80BER19X | 80 | 110 | 16 | 1.0 | 0.6 | 21.0 | 19.1 | 22.8 | 30.1 | 0.326 | 20000 | 31600 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR10 Series
BER10 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 85BNR10S | 85 | 130 | 22 | 1.1 | 0.6 | 26.8 | 25.7 | 37.5 | 28.4 | 0.962 | 13100 | 18700 |
| 85BNR10H | 85 | 130 | 22 | 1.1 | 0.6 | 26.8 | 25.7 | 24.5 | 28.4 | 0.906 | 16800 | 26100 |
| 85BNR10X | 85 | 130 | 22 | 1.1 | 0.6 | 26.8 | 25.7 | 24.5 | 28.4 | 0.906 | 19600 | 30700 |
| 85BER10S | 85 | 130 | 22 | 1.1 | 0.6 | 25.6 | 24.6 | 43.5 | 36.1 | 0.962 | 11200 | 15900 |
| 85BER10H | 85 | 130 | 22 | 1.1 | 0.6 | 25.6 | 24.6 | 29.5 | 36.1 | 0.906 | 14900 | 23300 |
| 85BER10X | 85 | 130 | 22 | 1.1 | 0.6 | 25.6 | 24.6 | 29.5 | 36.1 | 0.906 | 17700 | 28000 |
| 90BNR10S | 90 | 140 | 24 | 1.5 | 1.0 | 35.0 | 33.0 | 48.0 | 30.7 | 1.241 | 12200 | 17400 |
| 90BNR10H | 90 | 140 | 24 | 1.5 | 1.0 | 35.0 | 33.0 | 31.5 | 30.7 | 1.155 | 15700 | 24400 |
| 90BNR10X | 90 | 140 | 24 | 1.5 | 1.0 | 35.0 | 33.0 | 31.5 | 30.7 | 1.155 | 18300 | 28700 |
| 90BER10S | 90 | 140 | 24 | 1.5 | 1.0 | 33.5 | 31.5 | 56.0 | 38.8 | 1.241 | 10500 | 14800 |
| 90BER10H | 90 | 140 | 24 | 1.5 | 1.0 | 33.5 | 31.5 | 38.0 | 38.8 | 1.155 | 14000 | 21800 |
| 90BER10X | 90 | 140 | 24 | 1.5 | 1.0 | 33.5 | 31.5 | 38.0 | 38.8 | 1.155 | 16600 | 26100 |
| 95BNR10S | 95 | 145 | 24 | 1.5 | 1.0 | 35.5 | 34.5 | 50.0 | 31.3 | 1.298 | 11700 | 16700 |
| 95BNR10H | 95 | 145 | 24 | 1.5 | 1.0 | 35.5 | 34.5 | 32.5 | 31.3 | 1.209 | 15000 | 23400 |
| 95BNR10X | 95 | 145 | 24 | 1.5 | 1.0 | 35.5 | 34.5 | 32.5 | 31.3 | 1.209 | 17500 | 27500 |
| 95BER10S | 95 | 145 | 24 | 1.5 | 1.0 | 34.0 | 33.0 | 58.5 | 39.7 | 1.298 | 10000 | 14200 |
| 95BER10H | 95 | 145 | 24 | 1.5 | 1.0 | 34.0 | 33.0 | 39.5 | 39.7 | 1.209 | 13400 | 20900 |
| 95BER10X | 95 | 145 | 24 | 1.5 | 1.0 | 34.0 | 33.0 | 39.5 | 39.7 | 1.209 | 15900 | 25000 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR10 Series
BER10 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 100BNR10S | 100 | 150 | 24 | 1.5 | 1.0 | 36.0 | 36.0 | 52.0 | 32.3 | 1.245 | 11200 | 16000 |
| 100BNR10H | 100 | 150 | 24 | 1.5 | 1.0 | 36.0 | 36.0 | 34.0 | 32.3 | 1.253 | 14400 | 22400 |
| 100BNR10X | 100 | 150 | 24 | 1.5 | 1.0 | 36.0 | 36.0 | 34.0 | 32.3 | 1.253 | 16800 | 26400 |
| 100BER10S | 100 | 150 | 24 | 1.5 | 1.0 | 34.5 | 34.5 | 61.0 | 41.2 | 1.245 | 9600 | 13600 |
| 100BER10H | 100 | 150 | 24 | 1.5 | 1.0 | 34.5 | 34.5 | 41.0 | 41.2 | 1.253 | 12800 | 20000 |
| 100BER10X | 100 | 150 | 24 | 1.5 | 1.0 | 34.5 | 34.5 | 41.0 | 41.2 | 1.253 | 15200 | 24000 |
| 105BNR10S | 105 | 160 | 26 | 2.0 | 1.0 | 41.0 | 41.0 | 59.5 | 34.5 | 1.698 | 10600 | 15100 |
| 105BNR10H | 105 | 160 | 26 | 2.0 | 1.0 | 41.0 | 41.0 | 39.0 | 34.5 | 1.585 | 13600 | 21200 |
| 105BNR10X | 105 | 160 | 26 | 2.0 | 1.0 | 41.0 | 41.0 | 39.0 | 34.5 | 1.585 | 15900 | 25000 |
| 105BER10S | 105 | 160 | 26 | 2.0 | 1.0 | 39.0 | 39.5 | 70.0 | 43.9 | 1.698 | 9100 | 12900 |
| 105BER10H | 105 | 160 | 26 | 2.0 | 1.0 | 39.0 | 39.5 | 47.5 | 43.9 | 1.585 | 12100 | 18900 |
| 105BER10X | 105 | 160 | 26 | 2.0 | 1.0 | 39.0 | 39.5 | 47.5 | 43.9 | 1.585 | 14400 | 22700 |
| 110BNR10S | 110 | 170 | 28 | 2.0 | 1.0 | 46.0 | 47.0 | 68.0 | 36.7 | 2.133 | 10000 | 14300 |
| 110BNR10H | 110 | 170 | 28 | 2.0 | 1.0 | 46.0 | 47.0 | 44.5 | 36.7 | 1.996 | 12900 | 20000 |
| 110BNR10X | 110 | 170 | 28 | 2.0 | 1.0 | 46.0 | 47.0 | 44.5 | 36.7 | 1.996 | 15000 | 13600 |
| 110BER10S | 110 | 170 | 28 | 2.0 | 1.0 | 44.0 | 45.0 | 79.5 | 46.7 | 2.133 | 8600 | 12000 |
| 110BER10H | 110 | 170 | 28 | 2.0 | 1.0 | 44.0 | 45.0 | 54.0 | 46.7 | 1.996 | 11500 | 17900 |
| 110BER10X | 110 | 170 | 28 | 2.0 | 1.0 | 44.0 | 45.0 | 54.0 | 46.7 | 1.996 | 13600 | 21500 |
Ultra High-Speed Angular Contact Ball Bearings
(ROBUST Series)
BNR10 Series
BER10 Series
Bearing
Numbers |
Boundary Dimensions (mm) | Basic
Load Ratings (kN) | Permissible
Axial
Load
(kN) | Effective Load
Center
(mm)
a | Mass
(g) | Limiting Speeds |
|
d |
D |
B | r
(min) | r1
(min) | Cr
(Dynamic) | C0r
(Static) | Grease | Oil |
| 120BNR10S | 120 | 180 | 28 | 2.0 | 1.0 | 47.5 | 50.5 | 73.5 | 38.4 | 2.286 | 9400 | 13400 |
| 120BNR10H | 120 | 180 | 28 | 2.0 | 1.0 | 47.5 | 50.5 | 48.0 | 38.4 | 2.139 | 12000 | 18700 |
| 120BNR10X | 120 | 180 | 28 | 2.0 | 1.0 | 47.5 | 50.5 | 48.0 | 38.4 | 2.139 | 14000 | 22000 |
| 120BER10S | 120 | 180 | 28 | 2.0 | 1.0 | 45.5 | 48.5 | 86.0 | 49.0 | 2.286 | 8000 | 11400 |
| 120BER10H | 120 | 180 | 28 | 2.0 | 1.0 | 45.5 | 48.5 | 58.0 | 49.0 | 2.139 | 10700 | 16700 |
| 120BER10X | 120 | 180 | 28 | 2.0 | 1.0 | 45.5 | 48.5 | 58.0 | 49.0 | 2.139 | 12700 | 20000 |
| 130BNR10S | 130 | 200 | 33 | 2.0 | 1.0 | 60.0 | 61.5 | 89.5 | 43.0 | 3.408 | 8500 | 12000 |
| 130BNR10H | 130 | 200 | 33 | 2.0 | 1.0 | 60.0 | 61.5 | 58.5 | 43.0 | 3.194 | 11000 | 17000 |
| 130BER10S | 130 | 200 | 33 | 2.0 | 1.0 | 57.5 | 59.0 | 105 | 54.6 | 3.408 | 7300 | 10400 |
| 130BER10H | 130 | 200 | 33 | 2.0 | 1.0 | 57.5 | 59.0 | 70.5 | 54.6 | 3.194 | 9700 | 15200 |
| 140BNR10S | 140 | 210 | 33 | 2.0 | 1.0 | 62.5 | 66.5 | 97.0 | 44.6 | 3.647 | 8000 | 11500 |
| 140BNR10H | 140 | 210 | 33 | 2.0 | 1.0 | 62.5 | 66.5 | 63.5 | 44.6 | 3.419 | 10300 | 16000 |
| 140BER10S | 140 | 210 | 33 | 2.0 | 1.0 | 59.5 | 64.0 | 113 | 56.9 | 3.647 | 6900 | 9800 |
| 140BER10H | 140 | 210 | 33 | 2.0 | 1.0 | 59.5 | 64.0 | 76.5 | 56.9 | 3.419 | 9200 | 14300 |
| 150BNR10S | 150 | 225 | 35 | 2.1 | 1.0 | 73.5 | 78.0 | 114 | 47.6 | 4.405 | 7500 | 10700 |
| 150BNR10H | 150 | 225 | 35 | 2.1 | 1.0 | 73.5 | 78.0 | 74.5 | 47.6 | 4.129 | 9600 | 15000 |
| 150BER10S | 150 | 225 | 35 | 2.1 | 1.0 | 70.0 | 75.0 | 99.5 | 60.8 | 4.405 | 6400 | 9100 |
| 150BER10H | 150 | 225 | 35 | 2.1 | 1.0 | 70.0 | 75.0 | 90.0 | 60.8 | 4.129 | 8600 | 13400 |
