Needle Roller Bearing(NTN)

Maker : NTN

C 허용차 : 0 ~ -0.2

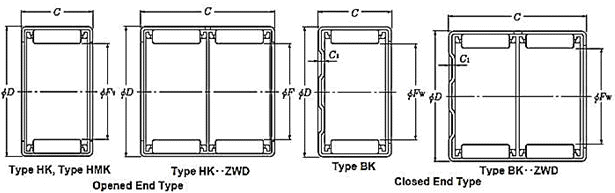

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
3	6.5	6	-	925	565	33000	50000	HK0306T2	-	0.0006	-
3	6.5	6	0.8	925	565	33000	50000	-	BK0306T2	0.0007	-
4	8	8	-	1770	1270	30000	45000	HK0408T2	-	0.0016	-
4	8	8	1.6	1770	1270	30000	45000	-	BK0408T2	0.0018	-
5	9	9	-	2640	2190	27000	40000	HK0509T2	-	0.0019	-
5	9	9	1.6	2640	2190	27000	40000	-	BK0509T2	0.0021	-
6	10	9	-	2660	2280	25000	37000	HK0609T2	-	0.0022	-
6	10	9	1.6	2660	2280	25000	37000	-	BK0609T2	0.0024	-
7	11	9	-	3400	3250	23000	34000	HK0709	-	0.0025	-
7	11	9	1.6	3400	3250	23000	34000	-	BK0709	0.0027	-
8	12	10	-	3850	3950	20000	30000	HK0810C	-	0.0032	IR5x8x12
	12	10	1.6	3850	3950	20000	30000	-	BK0810C	0.0034	IR5x8x12
	15	10	-	3800	2870	20000	30000	HMK0810	-	0.0067	IR5x8x12
	15	15	-	6600	5800	20000	30000	HMK0815	-	0.0100	IR5x8x16
	15	20	-	9050	8750	20000	30000	HMK0820T2	-	0.0130	-
9	13	10	-	4750	5300	18000	27000	HK0910	-	0.0035	IR6x9x12
	13	10	1.6	4750	5300	18000	27000	-	BK0910	0.0039	IR6x9x12
	13	12	-	5650	6650	18000	27000	HK0912	-	0.0042	IR6x9x12
	13	12	1.6	5650	6650	18000	27000	-	BK0912	0.0045	IR6x9x12
	16	12	-	5300	4450	18000	27000	HMK0912	-	0.0087	IR6x9x16
	16	16	-	7400	6850	18000	27000	HMK0916	-	0.0120	-

C 허용차 : 0 ~ -0.2

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
10	14	10	-	4500	5100	16000	24000	HK1010	-	0.0038	IR7x10x10.5
	14	10	1.6	4500	5100	16000	24000	-	BK1010	0.0042	IR7x10x10.5
	14	12	-	5900	7250	16000	24000	HK1012	-	0.0045	IR7x10x16
	14	12	1.6	5900	7250	16000	24000	-	BK1012	0.0050	IR7x10x16
	14	15	-	7100	9150	16000	24000	HK1015	-	0.0056	IR7x10x16
	14	15	1.6	7100	9150	16000	24000	-	BK1015	0.0062	IR7x10x16
	17	10	-	4250	3450	16000	24000	HMK1010	-	0.0079	IR7x10x10.5
	17	12	-	5600	4850	16000	24000	HMK1012	-	0.0094	IR7x10x16
	17	15	-	7400	6950	16000	24000	HMK1015	-	0.0120	IR7x10x16
	17	20	-	10200	10500	16000	24000	HMK1020	-	0.0160	-
12	16	10	-	5050	6250	13000	20000	HK1210	-	0.0046	IR8x12x10.5
	16	10	1.6	5050	6250	13000	20000	-	BK1210	0.0052	IR8x12x10.5
	18	12	-	6600	7300	13000	20000	HK1212	-	0.0091	IR8x12x12.5
	18	12	2.7	6600	7300	13000	20000	-	BK1212	0.0100	IR8x12x12.5
	19	12	-	7100	6900	13000	20000	HMK1212	-	0.0110	IR8x12x12.5
	19	15	-	9400	9900	13000	20000	HMK1215	-	0.0140	IR9x12x16
	19	20	-	12300	14000	13000	20000	HMK1220	-	0.0180	-
	19	25	-	15300	18600	13000	20000	HMK1225	-	0.0230	-
13	19	12	-	6950	7900	12000	18000	HK1312	-	0.0100	IR10x13x12.5
13	19	12	2.7	6950	7900	12000	18000	-	BK1312	0.0110	IR10x13x12.5
14	20	12	-	7200	8500	11000	17000	HK1412	-	0.0110	IR10x14x13
	20	12	2.7	7200	8500	11000	17000	-	BK1412	0.0120	IR10x14x13
	20	16	-	10700	14000	11000	17000	HK1416	-	0.0150	-
	20	16	2.7	10700	14000	11000	17000	-	BK1416	0.0160	-
	22	16	-	11500	12000	11000	17000	HMK1416	-	0.0190	IR10x14x20
	22	20	-	14600	16200	11000	17000	HMK1420	-	0.0240	-

C 허용차占?: 0 ~ -0.2

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
15	21	12	-	7500	9100	11000	16000	HK1512	-	0.0110	IR12x15x12.5
	21	12	2.7	7500	9100	11000	16000	-	BK1512	0.0130	IR12x15x12.5
	21	16	-	10700	14400	11000	16000	HK1516	-	0.0150	IR12x15x16.5
	21	16	2.7	10700	14400	11000	16000	-	BK1516	0.0170	IR12x15x16.5
	21	22	-	12900	18200	11000	16000	HK1522ZWD	-	0.0200	IR12x15x22.5
	21	22	2.7	12900	18200	11000	16000	-	BK1522ZWD	0.0220	IR12x15x22.5
	22	10	-	6100	6000	11000	16000	HMK1510	-	0.0110	IR10x15x12.5
	22	12	-	7950	8450	11000	16000	HMK1512	-	0.0130	IR12x15x12.5
	22	15	-	10900	12700	11000	16000	HMK1515	-	0.0160	IR12x15x16
	22	20	-	14900	18900	11000	16000	HMK1520	-	0.0220	IR12x15x22.5
	22	25	-	18500	25000	11000	16000	HMK1525	-	0.0270	-
16	22	12	-	7750	9700	10000	15000	HK1612	-	0.0120	IR12x16x13
	22	12	2.7	7750	9700	10000	15000	-	BK1612	0.014	IR12x16x13
	22	16	-	11100	15300	10000	15000	HK1616	-	0.016	IR12x16x20
	22	16	2.7	11100	15300	10000	15000	-	BK1616	0.018	IR12x16x20
	22	22	-	13300	19400	10000	15000	HK1622ZWD	-	0.022	-
	22	22	2.7	13300	19400	10000	15000	-	BK1622ZWD	0.023	-
	24	16	-	12400	13500	10000	15000	HMK1616	-	0.021	IR12x16x20
	24	20	-	15600	18200	10000	15000	HMK1620	-	0.027	IR12x16x22
17	23	12	-	8500	11100	9500	14000	HK1712	-	0.012	-
	23	12	2.7	8500	11100	9500	14000	-	BK1712	0.015	-
	24	15	-	12100	15000	9500	14000	HMK1715	-	0.018	IR14x17x17
	24	20	-	15200	20000	9500	14000	HMK1720C	-	0.024	IR12x17x20.5
	24	25	-	19300	27400	9500	14000	HMK1725B	-	0.030	IR12x17x25.5

C 허용차: 0 ~ -0.2

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
18	24	12	-	8300	10900	8500	13000	HK1812	-	0.013	IR15x18x12.5
	24	12	2.7	8300	10900	8500	13000	-	BK1812	0.015	IR15x18x12.5
	24	16	-	11800	17300	8500	13000	HK1816	-	0.018	IR15x18x16.5
	24	16	2.7	11800	17300	8500	13000	-	BK1816	0.020	IR15x18x16.5
	25	13	-	10200	12200	8500	13000	HMK1813	-	0.016	IR15x18x16
	25	15	-	12000	15100	8500	13000	HMK1815	-	0.019	IR15x18x16
	25	17	-	13800	18000	8500	13000	HMK1817	-	0.021	IR15x18x17.5
	25	19	-	15500	20900	8500	13000	HMK1819	-	0.024	IR15x18x20.5
	25	20	-	16300	22300	8500	13000	HMK1820	-	0.025	IR15x18x20.5
	25	25	-	20300	29600	8500	13000	HMK1825	-	0.031	IR15x18x25.5
19	27	16	-	13900	16300	8500	13000	HMK1916	-	0.025	IR15x19x20
19	27	20	-	17500	22100	8500	13000	HMK1920	-	0.031	-
20	26	12	-	9250	13000	8000	12000	HK2012C	-	0.014	IR15x20x13
	26	12	2.7	9250	13000	8000	12000	-	BK2012	0.017	IR15x20x13
	26	16	-	13000	20100	8000	12000	HK2016	-	0.019	IR17x20x16.5
	26	16	2.7	13000	20100	8000	12000	-	BK2016	0.022	IR17x20x16.5
	26	20	-	16400	27100	8000	12000	HK2020C	-	0.024	IR17x20x20.5
	26	20	2.7	16400	27100	8000	12000	-	BK2020C	0.027	IR17x20x20.5
	26	30	-	22200	40000	8000	12000	HK2030ZWD	-	0.035	IR17x20x30.5
	26	30	2.7	22200	40000	8000	12000	-	BK2030ZWD	0.037	IR17x20x30.5
	27	15	-	13000	17300	8000	12000	HMK2015	-	0.021	IR17x20x16.5
	27	20	-	17700	25600	8000	12000	HMK2020	-	0.027	IR17x20x20.5
	27	25	-	22000	34000	8000	12000	HMK2025	-	0.034	IR15x20x26
	27	30	-	26100	42000	8000	12000	HMK2030	-	0.041	IR17x20x30.5

C 허용차: 0 ~ -0.2

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
21	29	16	-	15300	19100	7500	11000	HMK2116	-	0.027	IR17x21x20
21	29	20	-	19400	25800	7500	11000	HMK2120	-	0.033	-
22	28	12	-	9750	14300	7500	11000	HK2212	-	0.013	IR17x22x13
	28	12	2.7	9750	14300	7500	11000	-	BK2212	0.015	IR17x22x13
	28	16	-	13600	22100	7500	11000	HK2216C	-	0.021	IR17x22x18
	28	16	2.7	13600	22100	7500	11000	-	BK2216	0.024	IR17x22x18
	28	20	-	17200	29800	7500	11000	HK2220C	-	0.026	IR17x22x20.5
	28	20	2.7	17200	29800	7500	11000	-	BK2220	0.030	IR17x22x20.5
	29	10	-	8400	10100	7500	11000	HMK2210	-	0.015	IR17x22x13
	29	15	-	13400	18500	7500	11000	HMK2215	-	0.022	IR17x22x16D
	29	20	-	18200	27400	7500	11000	HMK2220	-	0.030	IR17x22x20.5
	29	25	-	23600	38500	7500	11000	HMK2225	-	0.037	IR17x22x26
	29	30	-	26900	45000	7500	11000	HMK2230	-	0.045	IR17x22x32
24	31	20	-	18800	29100	6500	10000	HMK2420	-	0.032	-
24	31	28	-	26000	44500	6500	10000	HMK2428	-	0.045	IR20x24x28.5
25	32	12	-	11800	16300	6500	9500	HK2512	-	0.021	IR20x25x12.5
	32	12	2.7	11800	16300	6500	9500	-	BK2512	0.023	IR20x25x12.5
	32	16	-	15900	24000	6500	9500	HK2516	-	0.027	IR20x25x17
	32	16	2.7	15900	24000	6500	9500	-	BK2516	0.031	IR20x25x17
	32	20	-	20300	33000	6500	9500	HK2520	-	0.034	IR20x25x20.5
	32	20	2.7	20300	33000	6500	9500	-	BK2520	0.039	IR20x25x20.5
	32	26	-	26400	46000	6500	9500	HK2526	-	0.045	IR20x25x26.5
	32	26	2.7	26400	46000	6500	9500	-	BK2526	0.049	IR20x25x26.5
	32	38	-	35000	65500	6500	9500	HK2538ZWD	-	0.065	IR20x25x38.5
	32	38	2.7	35000	65500	6500	9500	-	BK2538ZWD	0.069	IR20x25x38.5

C 허용차: 0 ~ -0.2

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
25	33	10	-	9150	10400	6500	9500	HMK2510	-	0.019	IR20x25x12.5
	33	15	-	15200	19900	6500	9500	HMK2515C	-	0.029	IR20x25x16
	33	20	-	21800	31500	6500	9500	HMK2520	-	0.039	IR20x25x20.5
	33	25	-	26700	41000	6500	9500	HMK2525	-	0.048	IR20x25x26.5
	33	30	-	32500	53000	6500	9500	HMK2530	-	0.058	IR20x25x32
26	34	16	-	17200	23300	6000	9000	HMK2616	-	0.032	IR22x26x20
26	34	20	-	21800	31500	6000	9000	HMK2620	-	0.040	-
28	35	16	-	17300	27600	5500	8500	HK2816	-	0.030	IR22x28x17
	35	16	2.7	17300	27600	5500	8500	-	BK2816	0.034	IR22x28x17
	35	20	-	21300	36000	5500	8500	HK2820	-	0.038	IR22x28x20.5
	35	20	2.7	21300	36000	5500	8500	-	BK2820	0.043	IR22x28x20.5
	37	20	-	23600	32500	5500	8500	HMK2820	-	0.049	IR22x28x20.5
	37	30	-	35000	54500	5500	8500	HMK2830	-	0.073	-
29	38	20	-	24600	35000	5500	8500	HMK2920	-	0.050	-
29	38	30	-	34500	54000	5500	8500	HMK2930	-	0.075	-
30	37	12	-	13000	19500	5500	8000	HK3012	-	0.024	IR25x30x12.5
	37	12	2.7	13000	19500	5500	8000	-	BK3012	0.028	IR25x30x12.5
	37	16	-	18100	30000	5500	8000	HK3016	-	0.032	IR25x30x17
	37	16	2.7	18100	30000	5500	8000	-	BK3016C	0.037	IR25x30x17
	37	20	-	22300	39500	5500	8000	HK3020	-	0.040	IR25x30x20.5
	37	20	2.7	22300	39500	5500	8000	-	BK3020	0.047	IR25x30x20.5
	37	26	-	28500	54000	5500	8000	HK3026	-	0.053	IR25x30x26.5
	37	26	2.7	29100	55000	5500	8000	-	BK3026	0.059	IR25x30x26.5
	37	38	-	38500	78500	5500	8000	HK3038ZWD	-	0.076	IR25x30x38.5
	37	38	2.7	38500	78500	5500	8000	-	BK3038ZWD	0.083	IR25x30x38.5

C 허용차占?: 0 ~ -0.2

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
30	40	13	-	14100	17100	5500	8000	HMK3013	-	0.040	IR25x30x16
	40	15	-	17100	22100	5500	8000	HMK3015	-	0.044	IR25x30x16
	40	20	-	24200	34500	5500	8000	HMK3020	-	0.058	IR25x30x20.5
	40	25	-	31000	47000	5500	8000	HMK3025	-	0.073	IR25x30x26.5
	40	30	-	36000	57500	5500	8000	HMK3030	-	0.087	IR25x30x32
32	42	20	-	27500	38000	5000	7500	HMK3220	-	0.062	-
32	42	30	-	41500	64500	5000	7500	HMK3230	-	0.092	-
35	42	12	-	14000	22800	4700	7000	HK3512	-	0.028	-
	42	12	2.7	14000	22800	4700	7000	-	BK3512	0.033	-
	42	16	-	19700	35000	4700	7000	HK3516	-	0.037	-
	42	16	2.7	19700	35000	4700	7000	-	BK3516	0.044	-
	42	20	-	24800	47500	4700	7000	HK3520	-	0.046	-
	42	20	2.7	24800	47500	4700	7000	-	BK3520	0.055	-
	45	12	-	14900	17600	4700	7000	HMK3512	-	0.040	-
	45	15	-	20200	26200	4700	7000	HMK3515	-	0.050	-
	45	20	-	28400	40500	4700	7000	HMK3520	-	0.067	-
	45	25	-	36000	54500	4700	7000	HMK3525	-	0.083	-
	45	30	-	43000	69000	4700	7000	HMK3530	-	0.100	-
37	47	20	-	29300	43000	4300	6500	HMK3720	-	0.070	-
37	47	30	-	44500	73000	4300	6500	HMK3730	-	0.105	-
38	48	15	-	21700	29300	4300	6500	HMK3815	-	0.054	-
	48	20	-	30500	45000	4300	6500	HMK3820	-	0.072	-
	48	25	-	38500	61000	4300	6500	HMK3825	-	0.090	-
	48	30	-	46000	77000	4300	6500	HMK3830	-	0.107	IR32x38x32
	48	45	-	62000	113000	4300	6500	HMK3845ZWD	-	0.161	-

C 허용차: 0 ~ -0.2

Boundary dimensions				Basic load ratings (N)		Limiting speeds (rpm)		Bearing numbers		Mass kg	inner ring (참고)
Fw	D	C	C1 max	Cr	Cor	grease	oil	open end design	closed end design	Mass kg	inner ring (참고)
40	47	12	-	15100	26000	4000	6000	HK4012	-	0.031	IR35x40x12.5
	47	12	2.7	15100	26000	4000	6000	-	BK4012	0.038	IR35x40x12.5
	47	16	-	21100	40000	4000	6000	HK4016	-	0.041	IR35x40x17
	47	16	2.7	21100	40000	4000	6000	-	BK4016	0.051	IR35x40x17
	47	20	-	25900	52500	4000	6000	HK4020	-	0.052	IR35x40x20.5
	47	20	2.7	25900	52500	4000	6000	-	BK4020	0.064	IR35x40x20.5
	50	15	-	23100	32500	4000	6000	HMK4015	-	0.056	IR35x40x17
	50	20	-	32500	50000	4000	6000	HMK4020	-	0.075	IR35x40x20.5
	50	30	-	49000	85000	4000	6000	HMK4030	-	0.112	IR35x40x34
	50	40	-	58500	107000	4000	6000	HMK4040ZWD	-	0.150	-
45	52	16	-	21600	43000	3700	5500	HK4516	-	0.046	IR40x45x17
	52	16	2.7	21600	43000	3700	5500	-	BK4516	0.058	IR40x45x17
	52	20	-	27600	59000	3700	5500	HK4520	-	0.058	IR40x45x20.5
	52	20	2.7	27600	59000	3700	5500	-	BK4520	0.072	IR40x45x20.5
	55	20	-	33000	53000	3700	5500	HMK4520	-	0.083	IR40x45x20.5
	55	25	-	41500	71500	3700	5500	HMK4525	-	0.104	IR40x45x26.5
	55	30	-	49500	90000	3700	5500	HMK4530	-	0.125	IR40x45x34
	55	40	-	59500	113000	3700	5500	HMK4540ZWD	-	0.167	-
50	58	20	-	31500	63000	3200	4800	HK5020	-	0.072	IR40x50x22
	58	20	2.7	31500	63000	3200	4800	-	BK5020	0.087	IR40x50x22
	58	25	-	38500	82000	3200	4800	HK5025	-	0.090	IR45x50x25.5
	58	25	2.7	38500	82000	3200	4800	-	BK5025	0.109	IR45x50x25.5
	62	12	-	18200	23600	3200	4800	HMK5012	-	0.067	-
	62	15	-	25900	37000	3200	4800	HMK5015	-	0.084	-
	62	20	-	37500	60000	3200	4800	HMK5020	-	0.112	IR40x50x22
	62	25	-	48000	82500	3200	4800	HMK5025	-	0.140	IR45x50x25.5
	62	30	-	58500	105000	3200	4800	HMK5030B	-	0.168	IR45x50x32
	62	40	-	70000	134000	3200	4800	HMK5040ZWD	-	0.224	-
	62	45	-	79000	156000	3200	4800	HMK5045ZWBD	-	0.252	-
