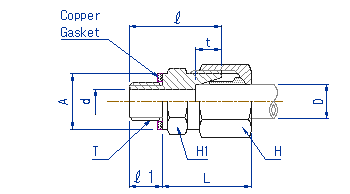

Male Connector
(BMC-G, For Copper Gasket)

Designations	Tube O.D	(PF) T	d	Width across flat		t	A	ℓ1	ℓ/t	Approx.
Designations	D	(PF) T	d	H1	H	t	A	ℓ1	ℓ/t	L
BMC04-01G	4	1/8	2.5	14	12	6.0	14.0	8	23	22.5
BMC06-01G	6	1/8	4	14	14	7.0	14.0	8	28	30.5
BMC06-02G	6	1/4	4	19	14	7.0	18.0	12	33	31.5
BMC08-01G	8	1/8	4	17	17	7.0	14.0	8	28	30.5
BMC08-02G	8	1/4	6	19	17	7.0	18.0	12	33	31.5
BMC10-02G	10	1/4	6	19	19	7.0	18.0	12	33	32.5
BMC10-03G	10	3/8	8	22	19	7.0	21.5	12	34	33.5
BMC12-02G	12	1/4	6	19	22	7.0	18.0	12	33	32.5
BMC12-03G	12	3/8	8	22	22	7.0	21.5	12	34	33.5
BMC12-04G	12	1/2	10	27	22	7.0	25.5	14	39	36.5
BMC15-03G	15	3/8	8	24	27	7.5	21.5	12	37	37.5
BMC15-04G	15	1/2	12	27	27	7.5	25.5	14	41	39.5
BMC16-04G	16	1/2	12	27	30	7.5	25.5	14	41	39.5
BMC18-04G	18	1/2	12	27	32	8.0	25.5	14	41	39.5
BMC20-06G	20	3/4	16	32	36	8.0	31.5	16	46	42.5
BMC22-04G	22	1/2	12	32	36	9.0	25.5	14	43	41.5
BMC22-06G	22	3/4	16	32	36	9.0	31.5	16	46	42.5
BMC25-06G	25	3/4	16	36	41	10.0	31.5	16	46	43.5
BMC25-08G	25	1	20	41	41	10.0	38.0	18	50	45.5
BMC28-08G	28	1	22	41	46	10.0	38.0	18	52	48.0
BMC30-08G	30	1	22	41	46	10.0	38.0	18	52	48.5
BMC30-10G	30	1 1/4	25	50	46	10.0	48.5	20	57	51.5
BMC32-10G	32	1 1/4	26	50	50	11.0	48.5	20	57	51.5
BMC35-10G	35	1 1/4	28	50	55	11.0	48.5	20	57	54.5
BMC38-12G	38	1 1/2	32	55	60	12.0	53.5	21	58	56.5
BMC40-12G	40	1 1/2	32	55	60	12.0	53.5	21	62	60.5
BMC42-12G	42	1 1/2	34	55	60	12.0	53.5	21	62	60.5
BMC50-16G	50	2	40	70	75	12.0	66.0	25	73	69.5

Designations	Tube O.D	(PF) T	d	Width across flat		t	A	ℓ/t	ℓ1	Approx.
Designations	D	(PF) T	d	H1	H	t	A	ℓ/t	ℓ1	L
BMC81-01G	10.5 (1/8)	1/8	4	17	19	7.0	14.0	8	29	32.5
BMC81-02G	10.5 (1/8)	1/4	6	19	19	7.0	18.0	12	33	32.5
BMC82-02G	13.8 (1/4)	1/4	6	22	24	7.5	18.0	12	36	36.0
BMC82-03G	13.8 (1/4)	3/8	8	22	24	7.5	21.5	12	36	36.0
BMC83-03G	17.3 (3/8)	3/8	8	27	32	8.0	21.5	12	38	38.5
BMC83-04G	17.3 (3/8)	1/2	12	27	32	8.0	25.5	14	41	39.5
BMC84-04G	21.7 (1/2)	1/2	12	32	36	9.0	25.5	14	43	41.5
BMC84-06G	21.7 (1/2)	3/4	16	32	36	9.0	31.5	16	46	42.5
BMC85-06G	27.2 (3/4)	3/4	16	41	46	10.0	31.5	16	50	48.0
BMC85-08G	27.2 (3/4)	1	22	41	46	10.0	38.0	18	52	48.0
BMC86-08G	34.0 (1)	1	22	46	55	11.0	38.0	18	54	53.5
BMC86-10G	34.0 (1)	1 1/4	28	50	55	11.0	48.5	20	57	54.5
BMC87-10G	42.7 (1 1/4)	1 1/4	31	60	65	12.0	48.5	20	63	63.5
BMC87-12G	42.7 (1 1/4)	1 1/2	34	60	65	12.0	53.5	21	64	63.5
BMC88-12G	48.6 (1 1/2)	1 1/2	36	65	75	12.0	53.5	21	65	65.5
BMC88-16G	48.6 (1 1/2)	2	40	70	75	12.0	66.0	25	73	69.5
